Introducing the Ampd Bros Ace X Step Through
Ampd Bros Ace X Step Through
Ampd Bros Ace X Step Through
OVERVIEW
Elevate your biking experience with the ACE-X, a trailblazer in the world of electric bikes since its inception in 2019. As we enter 2024, this flagship model is set to redefine your adventures with cutting-edge updates. 🚴♂️⚡️
Designed in conjunction with our in-house family team and continuously sought after since its debut in 2019, the ACE Bike continues to create waves nationwide.
Loaded with premium features and celebrated year after year as Australia's favourite fat tyre bike the ACE range boasts a Shimano 7 Speed Derailleur, vibrant colour options and a cutting-edge battery system with our Latest GEN3 Aluminium Battery which encompasses 21700 cells that are 30% larger than our competitors, paired with a Smart BMS for optimal performance and safety.
The ACE-X takes performance up a notch with our Custom Master Control unit, providing top-tier power density and advanced motor control algorithms. Seamlessly integrating light controls, improving reliability and simplifying diagnostics. The ACE is your go-to for all terrain adventure thanks to its 20x4" Fat Kenda krusade mud tyres, a High Torque Bafang Rear Hub Motor and Tektro Hydraulic Disc Brakes, guaranteeing a smooth and secure ride.
The ACE-X ensures no adventure is off-limits, accommodating two riders with its spacious seat and a removable Samsung Battery delivering a remarkable 60km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE-X handles it all with ease. Opt for the Off-Road Throttle Kit for cruising ease, and enjoy rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.
Experience the thrill of riding like never before with the ACE-X by Ampd Brothers - your perfect companion for every adventure, delivering unparalleled performance, style, and durability. 🌟🔋🚲
KEY FEATURES OF ACE-X:
- 15AH Samsung 21700 Battery
- Up to 60km+ Range
- X-Step Over Design Frame (S-Step through frame also Available)
- 500W High Torque Bafang Rear Hub Motor
- 25km/h (or Unlock up to 38km/h for Private Property Use)
- Tektro Hydraulic Disc Brakes
Share
Collapsible content
Technical Specifications
SPEED & RANGE
- Range Standard Models 60km
- Range Plus & Rally Models 80km
- Top Speed Standard Models 38km/h (Off Road Use Only)
- Top Speed Plus & Rally Models 45km/h (Off Road Use Only)
- Note: All Models are Locked to 25km/h and can be Unlocked to max for Off Road Private Property Use only.
BATTERY
- Standard Models 48V / 720Wh, 15AH
- Plus+ & Rally Models 48V / 960Wh, 20AH
- Samsung Premium 21700 Lithium cells

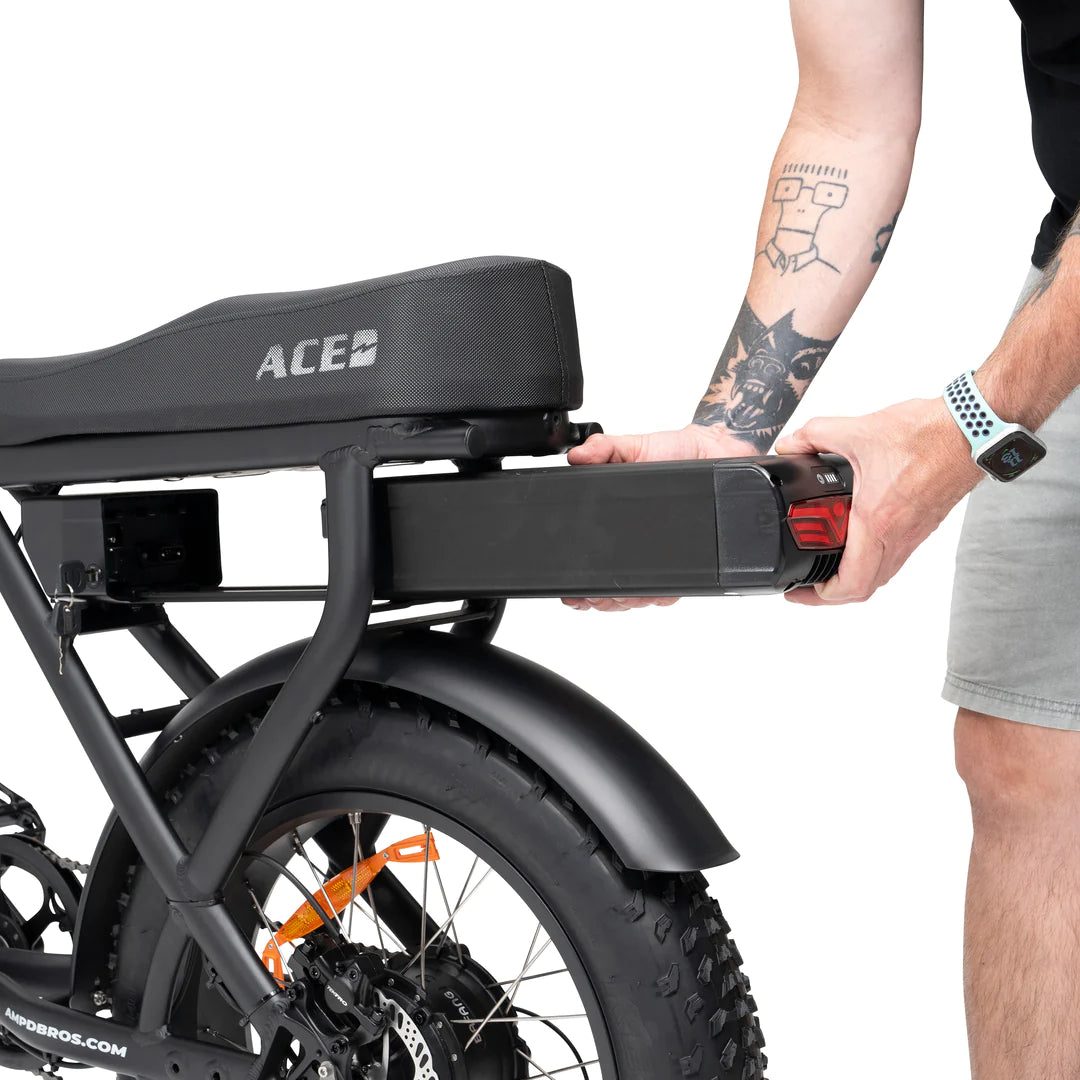

- Battery is removable and can be charged in bike or separately.
RIDE MODES
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
FEATURES
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders (Brown on Classic Models)
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED 220lm Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort (Brown on Classic Models)
- Bell Yes
BRAKES
- All Models Tektro Hydraulic Disc
- Discs 160mm
- E-Brakes Yes Motor Safety Cut Off
DISPLAY
- LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
CONTROLLER
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
DRIVETRAIN

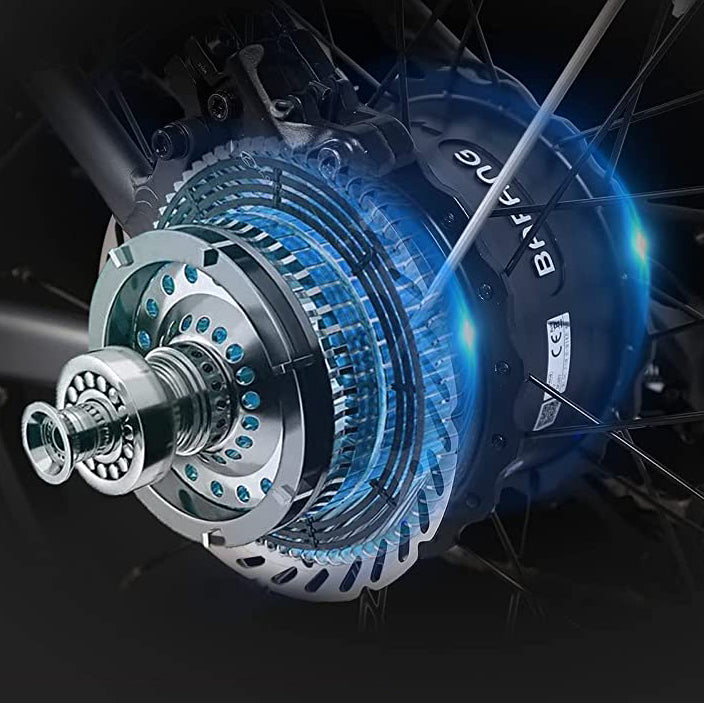

- Electric Motor Bafang RMG062 Latest Generation Rear Hub Drive
- Power Output 500W - 65N.m Standard Models
- Power Output 750W - 80N.m Plus+ & Rally Models
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter

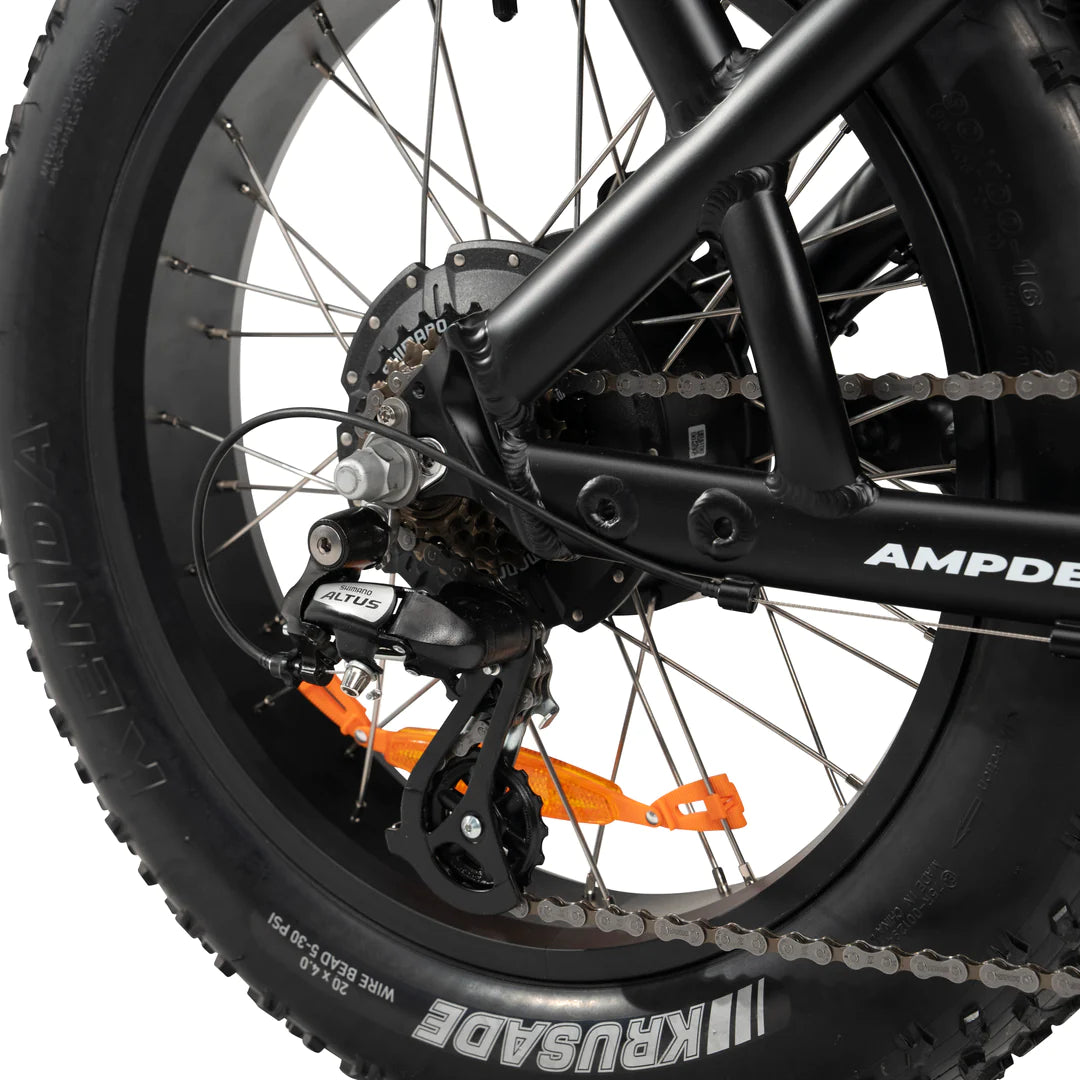

- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
CONSTRUCTION
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
SUSPENSION
- Standard Models No Suspension
- Plus+ & Rally Models Front Independent
WHEELS & TYRES
- 20x4.0" Kenda Krusade Fat Mud Tyres
- 20x4.0" CST Tourance Fat Street Tyres (Rally Plus+ Models Only)
CHARGING
- 7-8hrs 15Ah Batteries with Standard 2A Included Charger
- 9-10hrs 20Ah Batteries with Standard 2A Included Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
DIMENSIONS
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
WEIGHTS
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus/Rally + Battery 36 kg
- Max Loading 150 kg
INCLUSIONS
- In Box Bike, 48V Battery, 2A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
